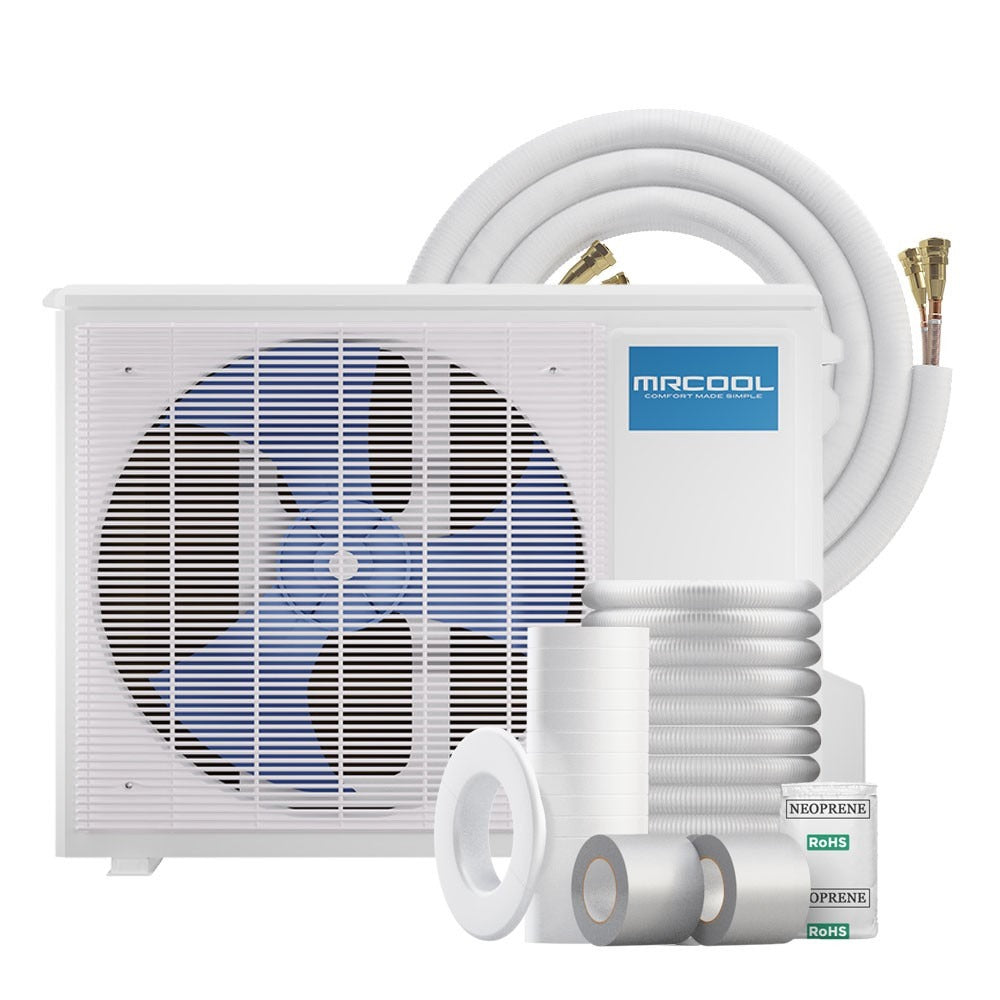

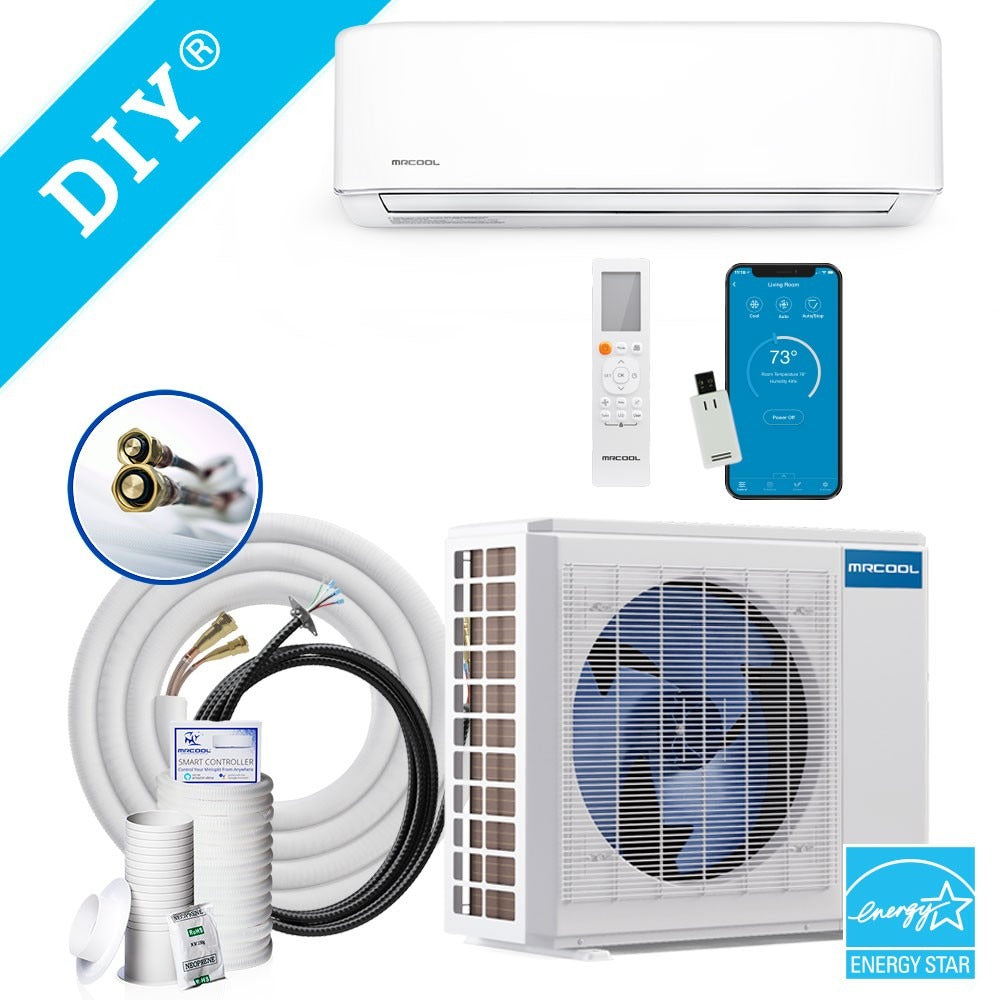

36k BTU 18 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted

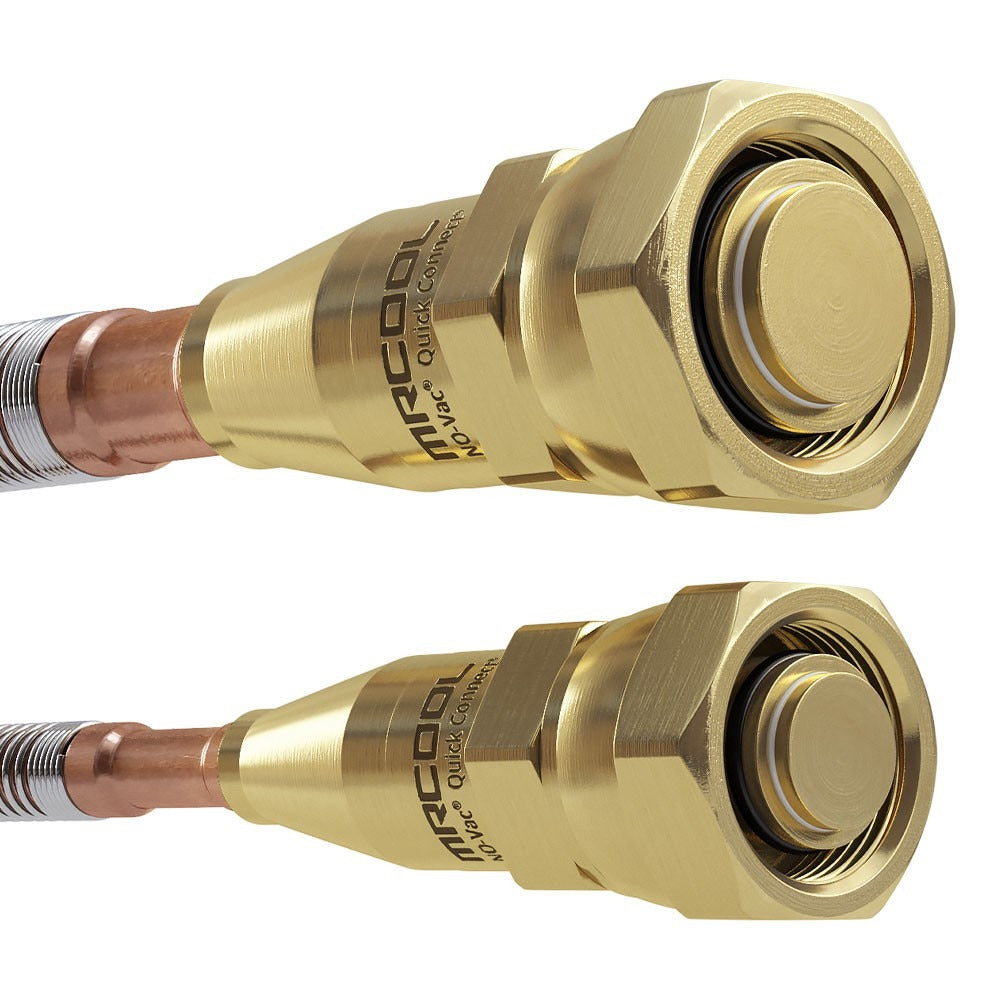

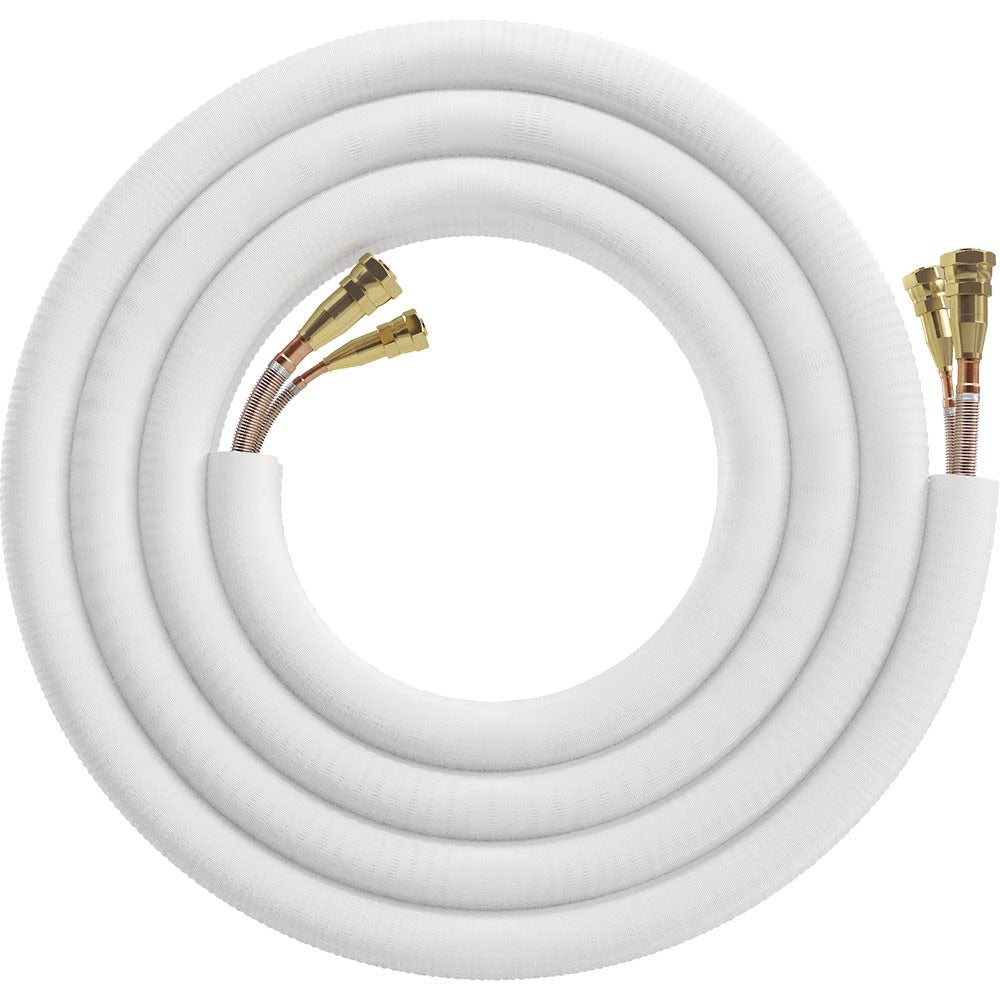

The MrCool 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series. This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MrCool Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation. This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MrCool offers a limited lifetime compressor warranty on this system.

• Model DIY-36-HP-WM-230C25
• UPC 810035935181
• AHRI Number 207339190
• Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
• Bundle Cooling Capacity 1.5 Ton
• Bundle Cooling Efficiency 18 SEER
• EER 8.7
• Heat Pump Efficiency (HSPF) 12
• Series DIY
• Zones 1
• Region Compatibility Nationwide
• Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom

DIY-36-HP-C-230C25 Specifications:

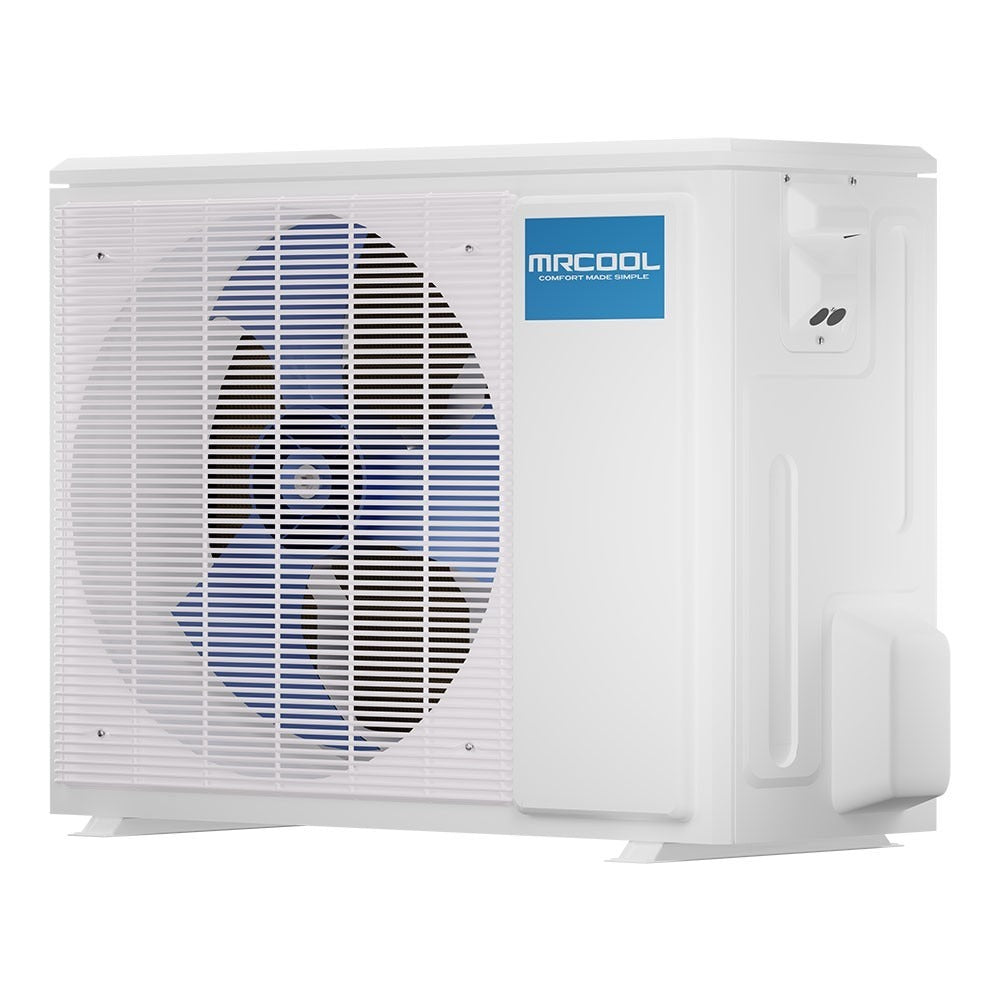

• Model DIY-36-HP-C-230C25
• AHRI Number 207339190
• UPC 810063868543
• Avg Coverage Area 1,250 - 1,500 Sq Ft
• Compressor Inverter
• Cooling Capacity 3 Ton
• Electrical Phase 1-Phase
• Heat Pump Efficiency (HSPF) 12
• Line Set Connection Type Quick Connect
• Liquid Line Size 3/8 inch
• Max Overcurrent Protection 35 amps
• Primary Heating Capacity 35,001 - 40,000 BTU
• Product Height (in) 31.89
• Product Length (in) 16.14
• Product Width (in) 37.24
• Refrigerant R-410a
• Cooling Efficiency 19 SEER and Above
• Series DIY
• Suction Line Size 5/8 inch
• System Application Type Ductless Split Systems
• Voltage 240
• Warranty 5 Year Parts, 7 Year Compressor
• Weight (lbs) 147.2700
• Region Compatibility

DIY-36-HP-WMAH-230C25 Specifications:

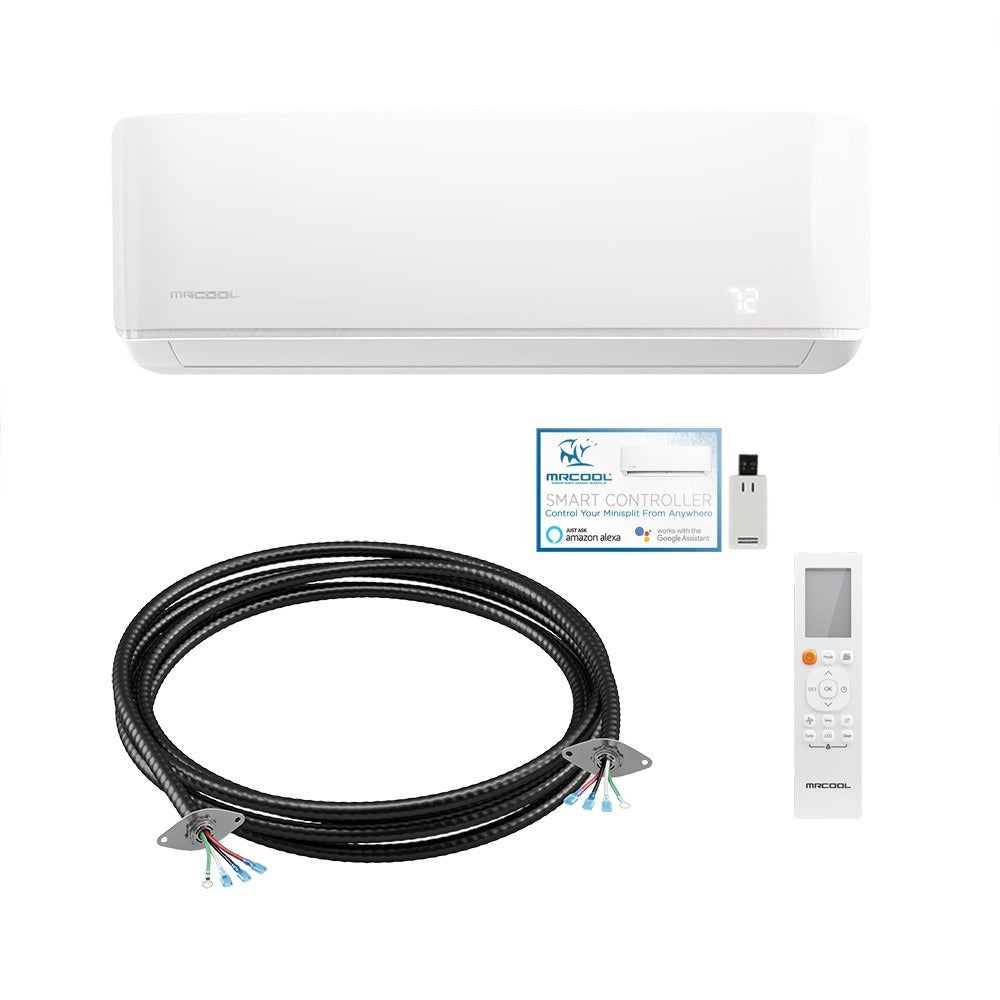

• Model DIY-36-HP-WMAH-230C25
• UPC 810063868550
• Air Flow Direction Horizontal
• Configuration Wall Mounted
• Blower Motor Variable Speed
• Cooling Capacity 3 Ton
• Electrical Phase 1-Phase
• Line Set Connection Type Quick Connect
• Liquid Line Size 3/8 inch
• Max Overcurrent Protection 15 amps
• Product Height (in) 14.25
• Product Length (in) 11.1
• Product Width (in) 49.57
• Refrigerant R-410a
• Series DIY
• Suction Line Size 5/8 inch
• System Application Type Ductless Split Systems
• Voltage 240
• Warranty 5 Year Parts
• Weight (lbs) 78.2600
